The ETX 3H cordless hydraulic crimper handles lugs from 10 to 300 mm² at 60 kN — one-handed, on site. The ETX CB battery cutter slices armoured and Cu/Al cable up to Φ60 mm. Plus the CrimpPress 1 bench lug crimper for the workshop.
🔋 60 kN · only 4.5 kg
The tool range
See it running
Watch the cordless tool in action. Tap to play.
Specifications
| Specification | Detail |
|---|---|
| ETX 3H — crimping range | 10–300 mm² cable lugs & connecting tubes |
| ETX 3H — force & cycle | 60 kN · 6–18 s per crimp · 17 mm stroke |
| ETX 3H — weight | 4.5 kg |
| ETX 3H — battery | Dual 18V/5.0Ah lithium · up to 120 crimps/charge (Cu 150 mm²) · 2 h charge, 100–240VAC |
| ETX 3H — dies | 12-die set: 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm² |
| ETX 3H — warranty | 1-year warranty (per manufacturer portfolio) |

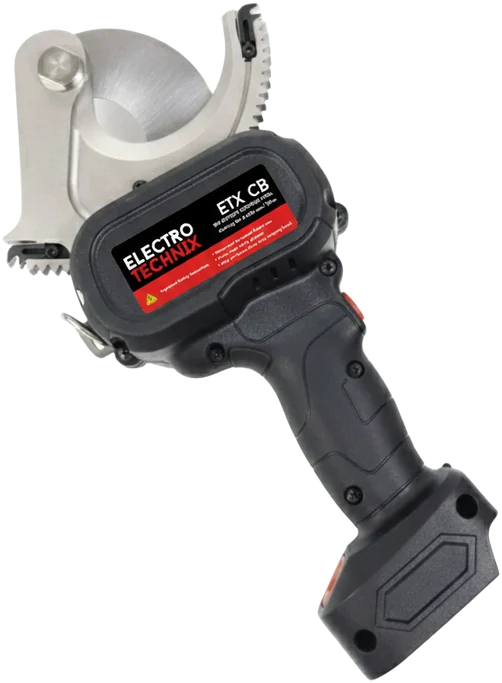

| ETX CB — max cut | Up to Φ60 mm · wire < 400 mm² |
| ETX CB — cable types | Armoured, copper & aluminium (Cu <10kV 3×70 / 1kV 5×25) |
| ETX CB — battery | Dual 18V/5.0Ah · up to 130 cuts/charge · 4.0 kg · 2 h charge |

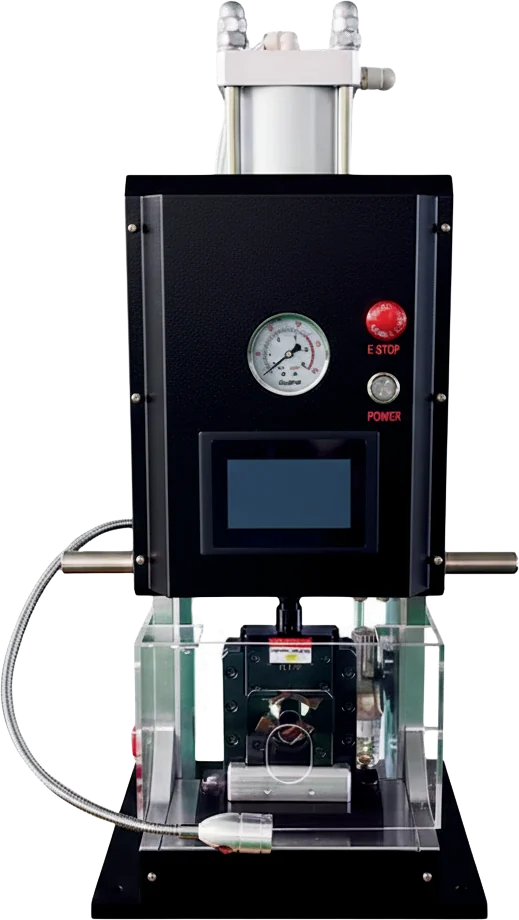

| CrimpPress 1 — lug crimping | Hexagonal 10–70 mm² · 100 kN · 0.03 mm applicator · bench |
Specifications are indicative and vary by configuration. Ask our team to confirm exact figures and kit contents.
